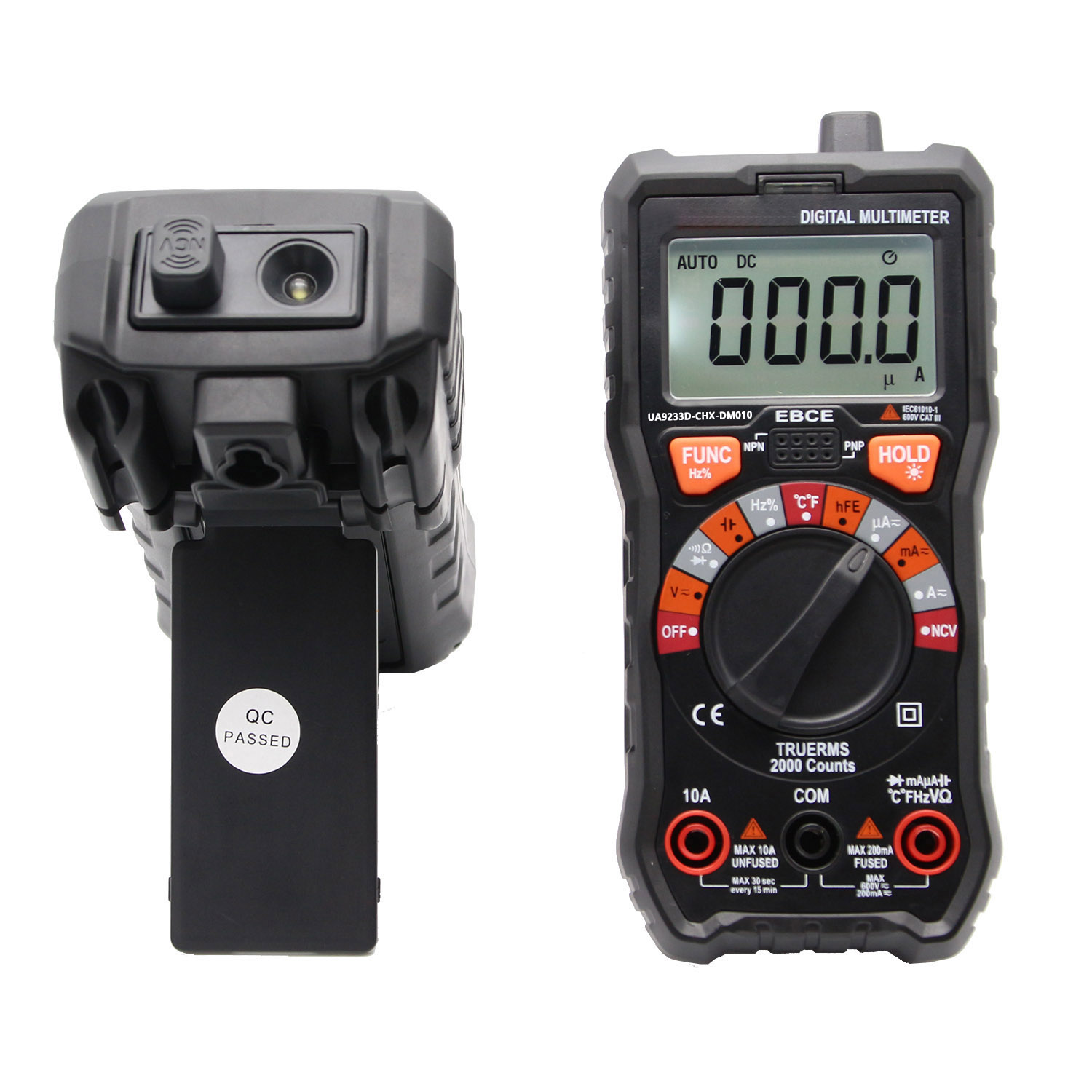

DC 2V/20V Digital Multimeter LCD Display With Backlight , 2000 Counts
Description:
1.2.1 When using, you must use the correct function and range.
1.2.2 Do not exceed the protection range of each range to measure the value.
1.2.3 Do not touch the top of the test leads (metal parts) when the meter is connected to the measuring circuit.
1.2.4 In the measurement, if the measured voltage is higher than 60V DC or 30V AC (RMS), should pay attention to keep the fingers always in the table after the finger care device.
1.2.5 Do not measure the voltage when the voltage between the measuring end and the earth exceeds AC 600V.
1.2.6 Before turning the change switch to change the measuring function, remove the test leads from the circuit under test.
1.2.7 Do not live measurement resistance, capacitance, diode and test circuit off.
1.2.8 In the current, resistance, capacitance, diode and line continuity test range, care should be taken to avoid connecting the meter to the voltage source.
Specification:
| Display | LCD Display with Backlight, 2000 counts |
| Screen Size | 45 * 28mm / 1.77 * 1.10in |
| DC Voltage | 2V/20V/200V/600V |
| AC Voltage | 2V/20V/200V/600V |
| DC Current | 200.0μA/2000μA/20.00mA/200.0mA/2A/10A |
| AC Current | 200.0μA/2000μA/20.00mA/200.0mA/2A/10A |
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
| Capacitance | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF |
| Temperature | -20～1000℃ / -4～1832℉ |
| Working Temperature | -10～50℃ |
| Storage Temperature | -10～50℃ |
| Item Size | 150 * 68 * 50mm |
| Item Weight | 225g |
| Package Size | 16.5 * 11 * 6.0cm |
| Package Weight | 412g |
FAQ:
What is your MOQ?Lead time?
We donot have MOQ on all products, 1 PC is also OK. Nearly all products are in stock for fast shippment, usually 3 working days, but in alibaba we write 10 days since sometimes the logistic information will be delayed(some items we send by our courier not by alibaba directly so logistics data is slow to update).
Do you accept OEM/ODM service?
Both OEM and ODM are highly welcomed as long as you meet our MOQ and we prefer orders such as OEM and ODM since quantity is large and clients are steady.
What is your after-sale service and warranty?
Our warranty is one year and we can repair free for you within warranty as long as the problem is not made personally. If personal problems and out of warranty then buyer have to pay the shipping fee and repair fee if needed.For small items we can send free replacement in next order.
What is your payment term and business term?
You can pay us by paypal,western union, Sigue,Veem,bank transfer,Escrow, any method is OK.For sample we usually send by express such as DHL,EMS,UPS,Fedex,Aramex etc,sea shippment and truck shippment all OK.For business term, FOB,EXW,DAP,CIF all accepted.
How can we trust you?And how we find you if you donot send the product?
We are located in Longhua District,Shenzhen, you can ask any Chinese friend to visit us. After your order is placed, if we donot ship on time, you can complain to alibaba . If you pay by escrow or paypal, it is even safer. You can find us by whatsapp/wechat/Email any time(24 hours* 7 days), if we donto reply on time we may sleep during night,we will reply you asap.
How to place an order?
You can choose the model and quantity you want, then we check the shipping fee and send you the Proforma invoice to pay. Payment online by escrow is welclomed, others also OK. After you pay us we will send directly to your address, then you pay get phones from local express to pay tax if needed, after that they deliver to you. If online payment by escrow pls donot forget to give us feedback if you are satisfied with the product and our service.
